Tungsten Carbide Circular Blade in Different Sizes

Basic Info.

Function	Cutting
Shape	Curve Saw Blade
Type	Carbide Saw Blade
Diameter	No
Coating	No
Transport Package	Wooden Box
Trademark	Grand Sea
Origin	China
HS Code	8209009000
Production Capacity	1000t/Year

Product Description

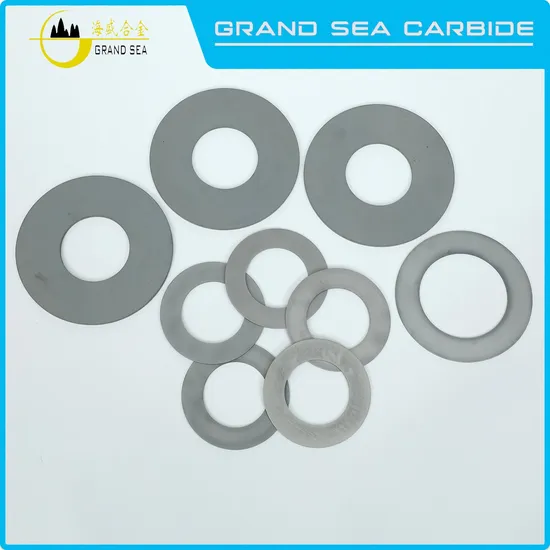

Tungsten Carbide Circular Blade in different Sizes

Grand Sea tungsten carbide cutting Disc common size from from 13mm to 320mm in diameter with a thickness range of 0.25mm to 5mm. The size can be custimzed based on client's requirement.Application: For making circular blades and rotary cutters servicing film and foil, paper cutting, battery cutting and other applications.The garde recommandation:

Grade	WC %	CO %	Grain size (um)	Density (g/cm³)±0.1	Hardness (HRA)±0.5	TRS (kgf/mm²)
H12U	88	12	0.4	14.30	92.5	>350
H12U-T	88	12	0.3	14.20	93.0	>350
H12S	88	12	0.6	14.25	91.0	>320
HGF20	88.5	11.5	0.8	14.25	91.0	>320
HGF30	85	15	1.0	13.90	89.0	>320
HGF31	84	15	0.8	13.90	90.4	>350
HGF32	84	15	0.4	13.90	91.4	>380
HG5	88	12	1.2	14.30	89.0	>280
HG6	85.5	14.5	2.0	14.00	86.5	>300
